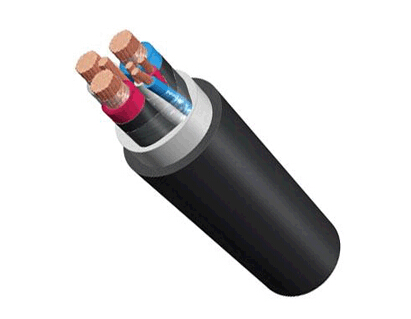

- 产品名称：煤矿用阻燃控制电缆
- 浏览：
- 添加时间：2015-06-06 16:43:09
- 推荐度：
产品介绍：
煤矿用阻燃控制电缆型号、名称及使用范围
|
型 号Model
|
名 称
Descriptions |
使 用 范 围
Scope of application |
|
MKVV
|
煤矿用聚氯乙烯绝缘聚氯乙烯护套控制电缆 PVC insulated PVC sheathed control cables for use in mines |
矿井中一般控制系统中 General control system in mines |
|
MKVV22
|
煤矿用聚氯乙烯绝缘钢带铠装聚氯乙烯护套控制电缆 PVC insulated steel tape armored PVC sheathed control cables for use in mines |
矿井中一般控制系统中能承受一定冲击力和压力 General control system cables are under some impact and pressure in the mine |
|
MKVV32
|
煤矿用聚氯乙烯绝缘细钢丝铠装聚氯乙烯护套控制电缆 PVC insulated fine steel wire armored PVC sheathed control cables for use in mines |
矿井中一般控制系统能承受一定拉力 General control system cables are under some pulling force in the mine |
|
MKVV42
|
煤矿用聚氯乙烯绝缘粗钢丝铠装聚氯乙烯护套控制电缆 PVC insulated thick steel wire armored PVC sheathed control cables for use in mines |
矿井中一般控制系统能承受较大拉力 General control system cables are under big impact pulling force in the mine |
|
MKVVP
|
煤矿用聚氯乙烯绝缘铜丝编织屏蔽聚氯乙烯护套控制电缆 PVC insulated copper wire weave shielded PVC sheathed control cables for use in mines |
矿井中强电磁干扰区作一般控制 Strong electromagnetism interference region as general control in mines |
|
MKVVP2
|
煤矿用聚氯乙烯绝缘铜带屏蔽聚氯乙烯护套控制电缆 PVC insulated copper tape shielded PVC sheathed control cables for use in mines |
矿井中强电磁干扰区作一般控制 Strong electromagnetism interference region as general control in mines |
|
MKVVR
|
煤矿用聚氯乙烯绝缘聚氯乙烯护套软控制电缆 PVC insulated PVC sheathed soft control cables for use in mines |
矿井中要求移动场合作一般控制 Request migration situation as general control in mines |
|
MKVVRP
|
煤矿用聚氯乙烯绝缘铜丝编织屏蔽聚氯乙烯护套软控制电缆 PVC insulated copper wire weave shielded PVC sheathed soft control cables for use in mines |
矿井中要求移动且强电磁干扰区作一般控制 Request migration situation and strong electromagnetism interference region as general control in mines |
煤矿用阻燃控制电缆使用特性 Service characteristics
| 电缆导体长期允许的工作温度 Long-term service temperature of the cable conductor |
70℃ | 额定电压U0/U Rated voltage U0/U |
450/750V | 电缆敷设温度 Cable laying temperature |
≥0℃ |
| 电缆的***小弯曲半径 Minimun bending radius | 无铠装层的≥电缆外径的6倍，有铠装层或铜带屏蔽的≥电缆外径的12倍， Non armored ≥outer diameter of cable 6 times, armored layer or copper tape shielded≥outer diameter of cable 12times 有屏蔽层的软电缆≥电缆外径的6倍 Shielded layer soft cable ≥ outer diameter of cable 6 times |
||||
煤矿用阻燃控制电缆电缆结构示意图
IIIustration of cable structure
IIIustration of cable structure
|
型 号 Model
|
额定电压 V
Rated voltage |
导体标称截面 mm2 Conductor nominal sectional
|
|||||||
|
0.5
|
0.75
|
1.0
|
1.5
|
2.5
|
4
|
6
|
10
|
||
|
芯 数 Core number
|
|||||||||
|
MKVV MKVVP
|
450/750
|
-
|
2-61
|
2-14
|
2-10
|
||||
|
MKVVP2
|
-
|
4-61
|
2-14
|
4-10
|
|||||
|
MKVV22
|
-
|
4-61
|
2-14
|
4-10
|
|||||
|
MKVV32
|
-
|
7-61
|
4-61
|
2-14
|
4-10
|
||||
|
MKVV42
|
-
|
16-61
|
7-61
|
2-14
|
4-10
|
||||
|
MKVVR
|
4-61
|
-
|
-
|
||||||
|
MKVVRP
|
4-61
|
4-48
|
-
|
-
|
|||||
注Note：推荐的芯数系列Recommendation core series：2、3、4、5、7、8、10、12、14、16、19、24、27、30、37、44、48、52、61芯（core）
电缆主要技术性能 Major technical performances
1、 电缆导体直流电阻及绝缘电阻 Cable conductor DC resistance and insulated resistance
|
标称截面
nominal sectional （mm2） |
导体结构
Conductor structure |
+20℃导体直流电阻（≤Ω/Km）
Conductor DC resistance at 20℃ |
+20℃绝缘电阻（≥MΩ·Km）
Insulated resistance at 20℃ |
||
|
种 类Type
|
根数/单线标称直径（mm）
core No./ single nominaldiameter |
不镀锡
Untinned |
镀锡
Tinned |
||
|
0.5
|
5
|
16/0.20
|
39.0
|
40.1
|
15
|
|
0.75
|
1
|
1/0.97
|
24.5
|
24.8
|
12
|
|
0.75
|
2
|
7/0.37
|
24.5
|
24.8
|
12
|
|
0.75
|
5
|
24/0.20
|
26.0
|
26.7
|
12
|
|
1.0
|
1
|
1/1.13
|
18.1
|
18.2
|
11
|
|
1.0
|
2
|
7/0.43
|
18.1
|
18.2
|
10
|
|
1.0
|
5
|
32/0.20
|
19.5
|
20.0
|
10
|
|
1.5
|
1
|
1/1.38
|
12.1
|
12.2
|
11
|
|
1.5
|
2
|
7/0.52
|
12.1
|
12.2
|
10
|
|
1.5
|
5
|
30/0.52
|
13.3
|
13.7
|
10
|
|
2.5
|
1
|
1/1.78
|
7.41
|
7.56
|
10
|
|
2.5
|
2
|
7/0.68
|
7.41
|
7.56
|
9
|
|
2.5
|
5
|
50/0.25
|
7.98
|
8.21
|
9
|
|
4
|
1
|
1/2.25
|
4.61
|
4.70
|
8.5
|
|
4
|
2
|
7/0.85
|
4.61
|
4.70
|
7.7
|
|
6
|
1
|
1/2.76
|
3.08
|
3.11
|
7
|
|
6
|
2
|
7/1.04
|
3.08
|
3.11
|
6.5
|
|
10
|
2
|
7/1.35
|
1.83
|
1.84
|
6.5
|
2、电缆其它主要技术性能 Other major technical performances
型号Model:MKVV22、MKVV32、MKVV42、MKVV、MKVVR、MKVVP、MKVVP2、MKVVRP
|
序 号
Serial number |
项目
Items |
技术性能
Technical performances |
|
|
1
|
+20℃线芯直流电阻（≤Ω/Km） Core DC resistance at 20℃
|
见上表 See above table
|
|
|
2
|
+20℃绝缘电阻（≥MΩ·Km） Insulation resistance at 20℃
|
见上表 See above table
|
|
|
3
|
5min耐工频交流电压试验
5min power frequency alternating current pressure test |
芯-芯Core-Core
芯-屏蔽Core-Shield 芯-铠装 Core-Armor |
3000V不击穿 3000V no breakdown
|
|
4
|
单根垂直燃烧试验 Single wire burning test
|
MT386
|
|
|
5
|
成束燃烧试验 Group burning test
|
符合GB/T18380标准中B类成束燃烧试验要求
Conforms to GB/T18380 standard B kind group burning test |
|
